KS8-10mm Mini-Type Self-return Linear Displacement Sensor with inested spring

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $30.00
  • >=10 Pieces
    $28.00
Shipping:
Support Express · Sea freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Graphic customization (Min. Order: 10 Pieces)

More

Customized packaging (Min. Order: 10 Pieces) Less
Samples:
$30.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
MIRAN
Model Number:
KS8-10mm
Usage:
Position Sensor
Theory:
Resistance Sensor
Output:
Analog SENSOR
Description:
linear displacement sensor
Amplifier Type:
Analog Output
Voltage - Supply:
≤24V
Output Type:
0-100%
Current - Supply:
1mA
Operating Temperature:
-60℃~+150℃
Mounting Type:
Horizontal installation
Features:
Infinite
Current - Supply (Max):
≤1mA
Package / Case:
Aluminium Case
Packaging:
PVC Tube
Output Configuration:
0-5V,0-10V,4-20mA,RS485
Current:
≤1mA
Voltage Rating:
≤24V
Size:
Self-return type
Size / Dimension:
Mini
Measuring Range:
0mm-25mm
Resolution:
0.01mm
Interface:
Analog
Technology:
Resistive
Sensing Range:
0-50mm
Current - Output (Max):
1mA
Function:
Programmable
Acceleration Range:
≤1m/s - ≤5m/s
Sensitivity (LSB/g):
1
Sensitivity (mV/g):
1
Sensitivity (LSB/(°/s)):
1
Sensitivity (mV/°/s):
1
Sensing Distance:
0-10mm
Voltage - Max:
24V
Resistance:
5000ohm
Resistance Tolerance:
±10%
Flow Sensor Type:
linear sensor
Voltage - Input:
0-100%
Application:
Industrial Automation
levels of protection:
IP65
Very long life:
>100*1000000 cycles,>2*1000000 m
Resolution (Bits):
0.01mm
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inside each Piece Is Packed in a PVC Tube with Foam, outside is the specialized carton.
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Product Description

Product Description

KS8-10mm Mini-Type Self-return Linear Displacement Sensor with inested spring


Attention: The stroke length is 10mm. The longer the trip, the more expensive it is. The stroke is optional from 0mm-25mm. If you need

different lengths of travel, please contact with the supplier. The default signal output: 0-100% of the power supply voltage value, which is

resistance output, if you need other signal output, Such as 4-20mA, 0-5V, 0-10V, and RS485 Signal Output please purchase the transmission

module in the shop or contact with the supplier..



Standard Specifications:  brand:Miran
KS8 minitype10mm15mm20mm               25mmStroke Length(mm) 10 15  20  25
Linear Precision (±%FS)±0.1%
Resistance (±20%)5ΚΩ
Effective Stroke   range+3mm
Resolution   Infinite
Repeatability Precision   0.01mm
Temperature Coefficient   ≤1.5ppm/℃
Recommended Current   ≤1mA
Input Voltage   (4ΚΩ~5ΚΩ): ≤24VDC
Output0~100% × input voltage
Sensitivity   1
Temperature Drift   infinitesimal
Load Characteristic   ≥10mA
Very long life>100*1000000 cycles,>25*1000000 m



Ingress Protection: IP65;    Max Speed: ≤5m/s;    Return Speed: ≤1m/s





Applications: KSF Linear Position Sensor equivalent to Novo is a super-minitype of a side slider, suitable for printing equipment and valve control.

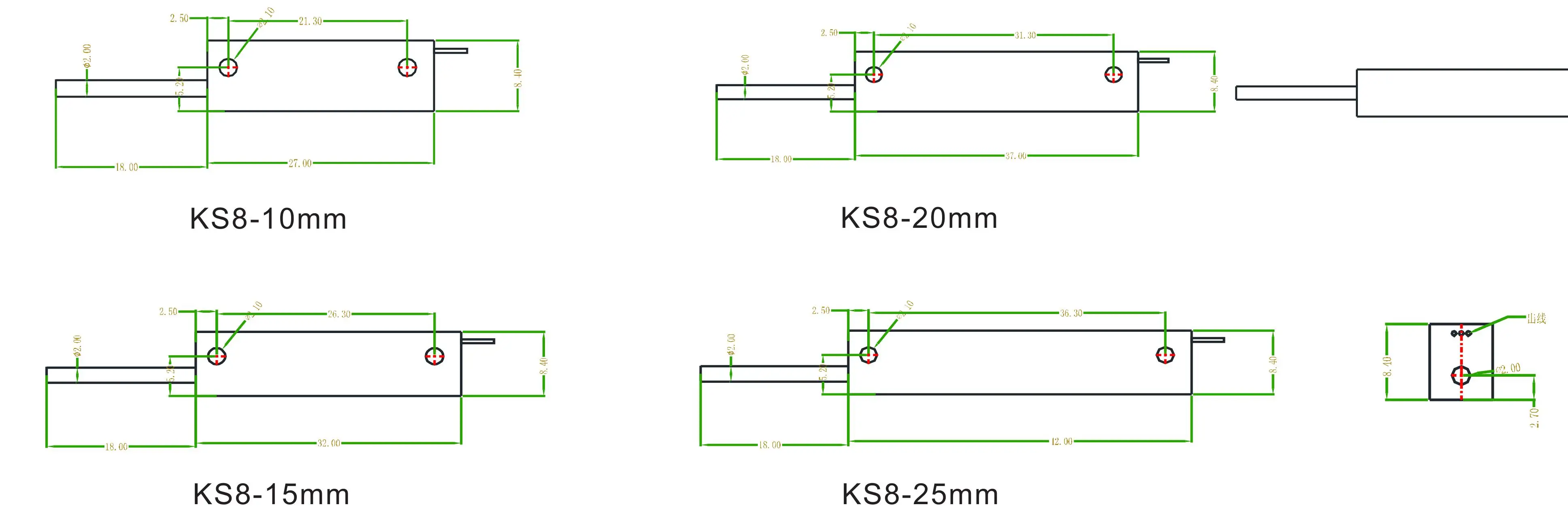

Installation Size (mm)
